¶ Unit Overview
This is a calendar view of the health of various Systems and Subsystems (or equipment) of the plant. Available in a monthly view, each slot of the calendar, represented by a particular color represents the number of deviations that have been observed in that particular time period. It helps the users to explore the nature of issues in the Unit from here and proceed to look into details of specific issues if there is a need.

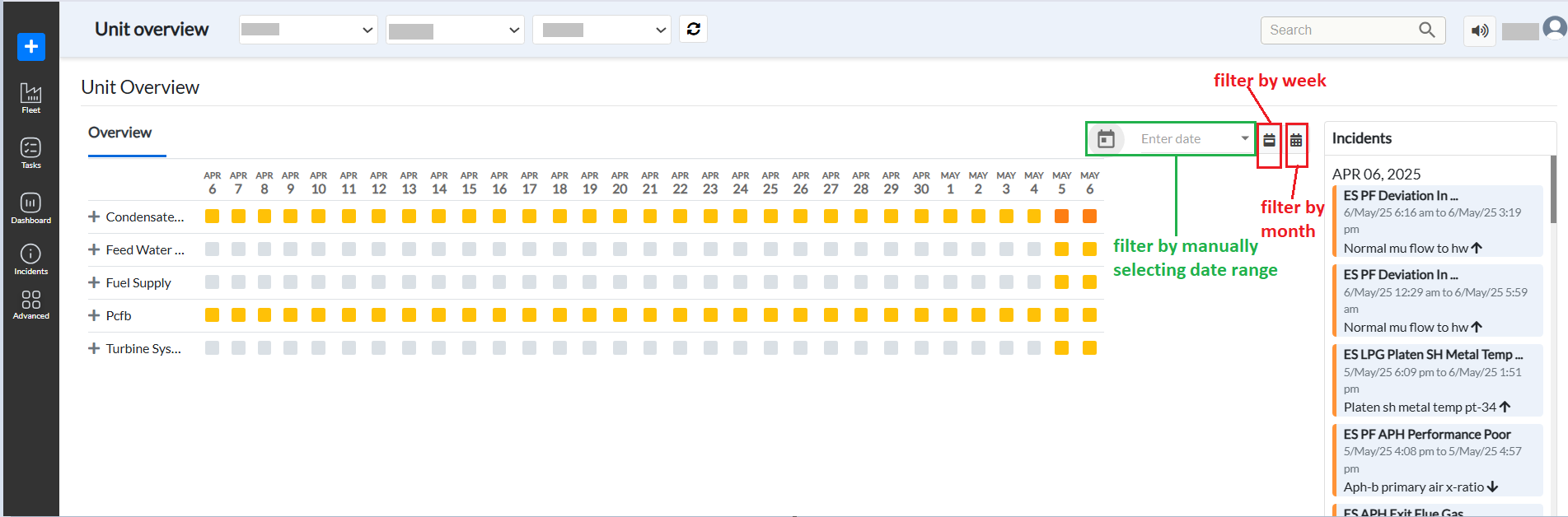

To view the health of the unit, click Unit Overview under Ops Center. The Unit overview screen displays.

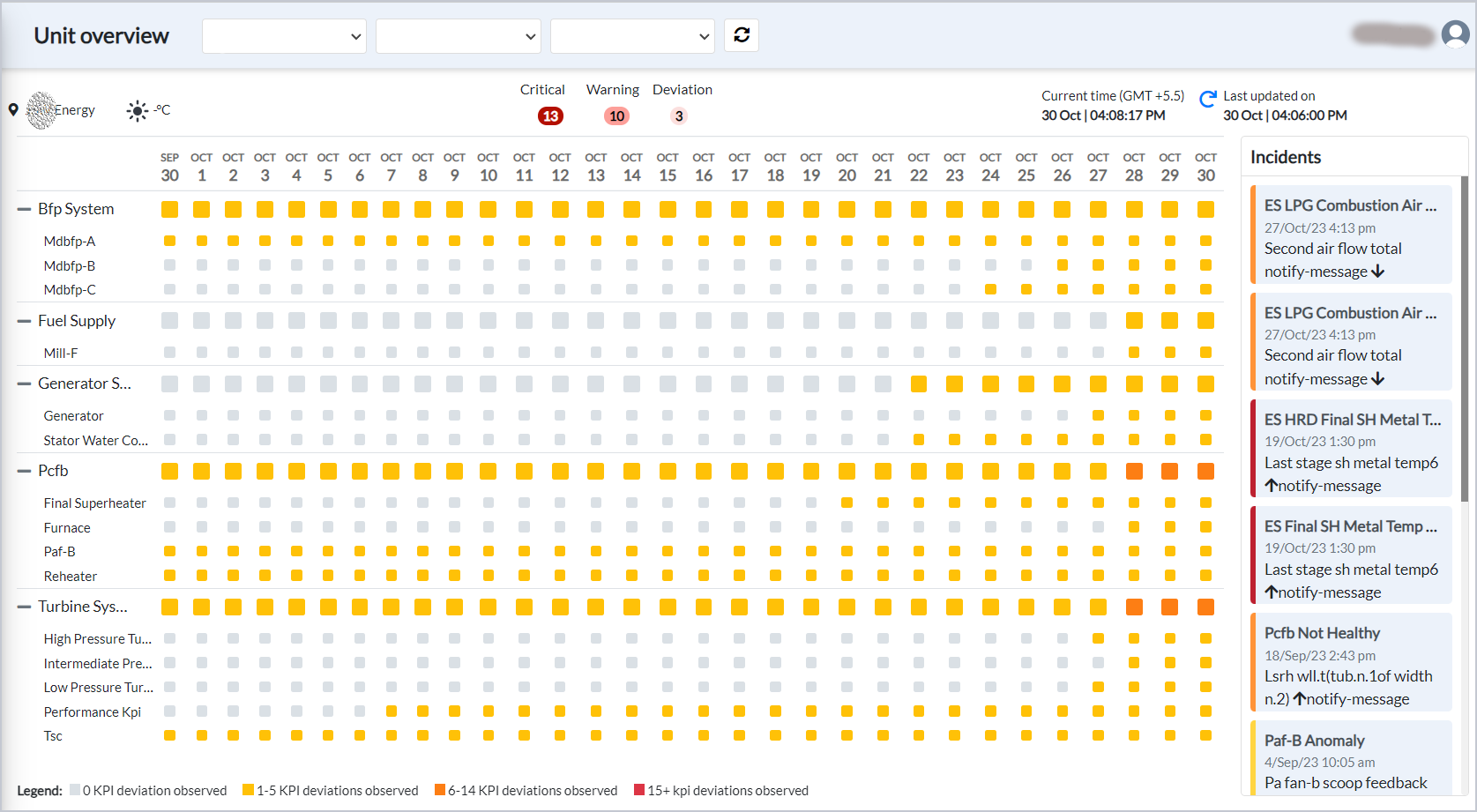

Figure 81. Unit overview page
¶ Viewing Health Status of Systems and Equipment
-
To view the status of the Equipment within the System, click + beside the System. The screen expands to display the equipment under the System.
-
Click the desired slot to view the associated incidents displayed on the right-side
-
For a detailed view of a specific incident, click the incident on the right-side. You are navigated to the Incidents page.
